About this item

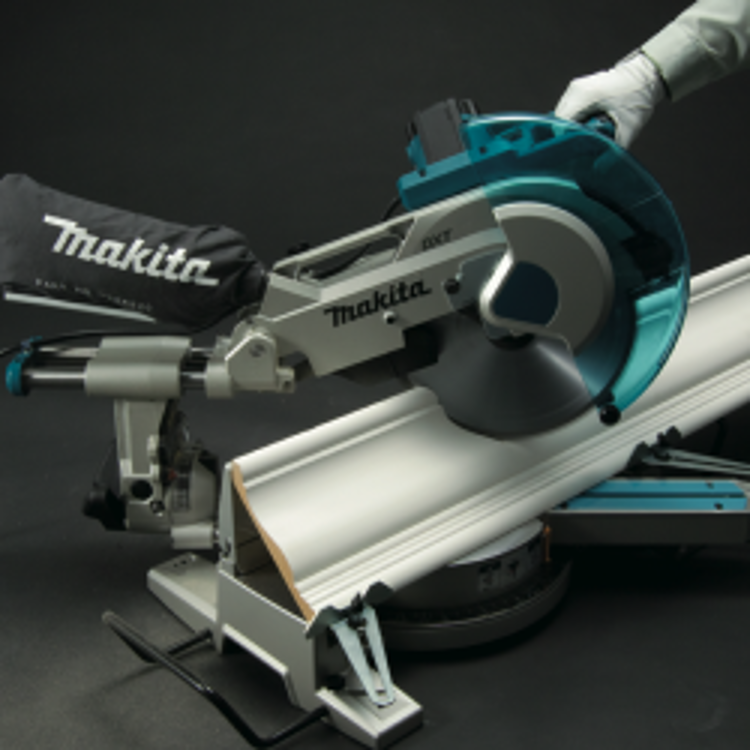

- Large cutting capacity up to 203 mm (8") crown molding (nested) and 165 mm (6-1/2") baseboard (vertical), and 382 mm (15") crosscut at 90º
- Compact design with a patented 4-Steel Rail Sliding System further increases rigidity to produce superior cuts
- Exclusive 6 linear ball bearings deliver smooth, solid, and adjustmentfree “dead-on” accurate cuts
- Exclusive 140 mm (5-1/2") tall dual sliding fence system features versatile upper and lower fence adjustments for more precise miter and bevel cuts
- Patented retractable rear guard and triple gear system for increased vertical cutting capacity
Item Includes Carbide-Tipped Saw Blade, Vertical Vise, Socket Wrench, Triangular Rule, Dust Bag, Holder Assembly
Technical Specification
| Continuous Rating Input | 1,650 W |
| Blade Diameter | 305 mm (12") |
| Miter Angle | 52° L / 60° R |
| Max Cutting Capacity | 90°: 107 x 363 mm (4-1/4" x 14-1/4") 45°: 107 x 255 mm (4-1/4" x 10") |
| Bevel Angle | 45° L / 45° R |
| No Load Speed (RPM) | 3,200 |
| Dimensions (L x W x H) | 721 x 640 x 806 mm (28-3/8" x 25-1/4" x 31-3/4") |
| Net Weight | 26.6 kg (58.6 lbs.) |
| Power Supply Cord | 2.5 m (8.2 ft) |
