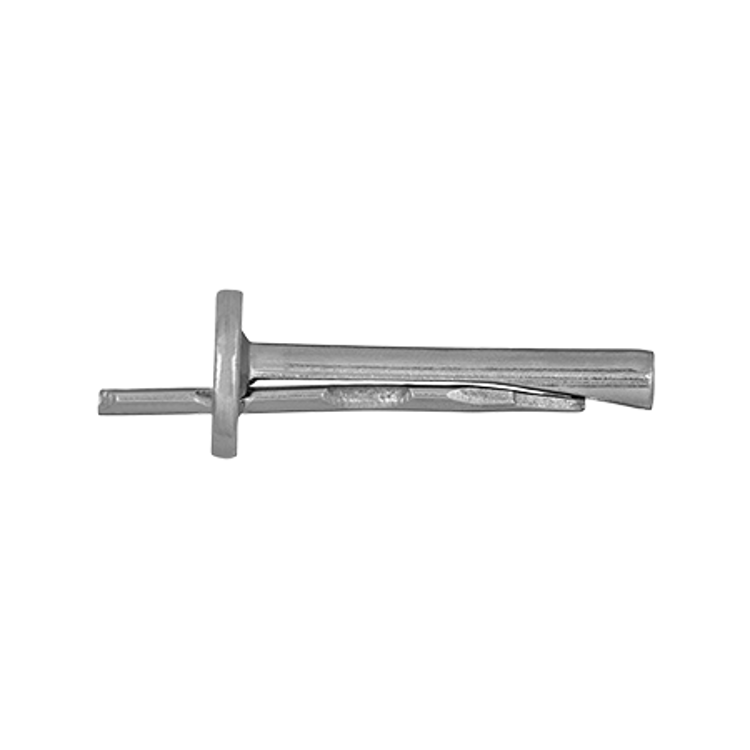

Product Features and benefits:
- During installation, when the nail is flush with the head, it signifies the complete expansion of the anchor
- Steel body and pin ensure positive expansion and high safety in use
- Approved for installation in cracked and non-cracket concrete.
- Fire resistance class A1
- Reliable setting thanks to the simple visual check
- Impact expansion by hammer, no setting tool is needed
Applications:
- Installation of lightweight ceilings and suspended ceilings
- Installation of coffered ceilings
- Installation of conduit and pipe clamps and other MEP applications
- Metal roof profiles
- Punched straps

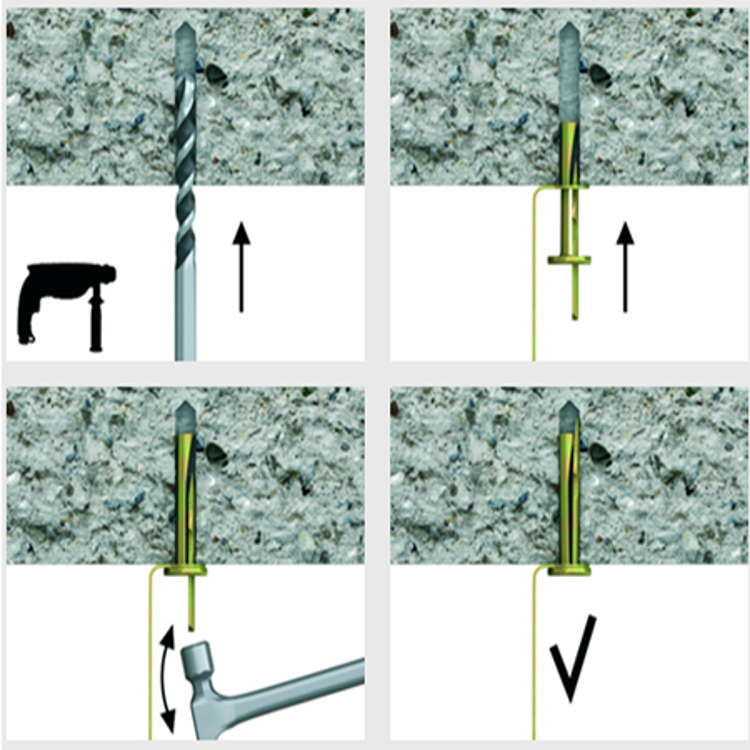

Installation guide
- Drill a hole of required diameter and depth
- Insert anchor through fixture into hole until fixing depth is reached.
- Hammer-in the nail until flush with head.
- Do not hit the expansion wedge at the stage.
Technical Specifications:
| Size | Product Code | Anchor | Fixture |
| Diameter | Length | Max. thickness | Hole diameter |
| d | L | tfix | df |
| [mm] | [mm] | [mm] | [mm] |
| R-GS-06065 | 5.8 | 65 | 35 | 7 |
