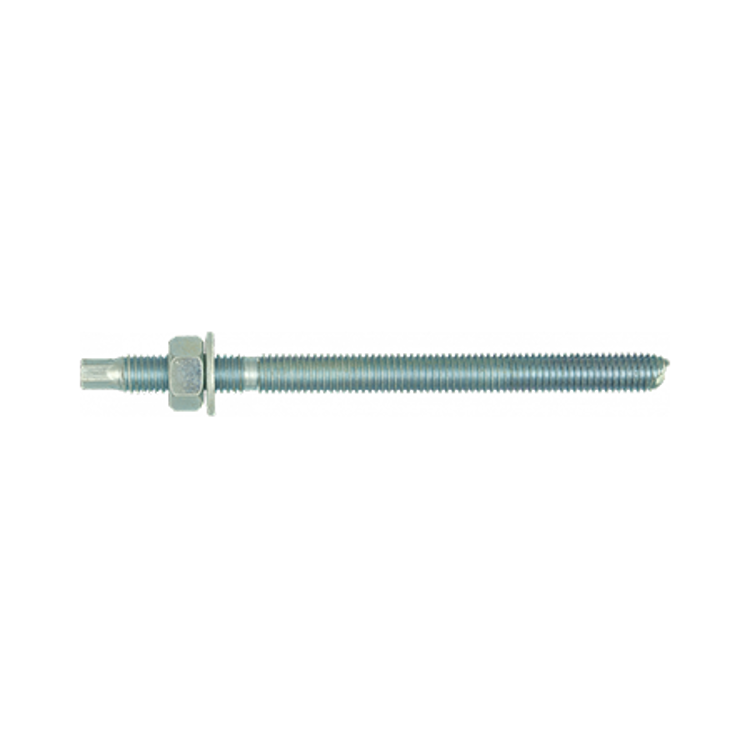

RAWLPLUG | R-STUDS-08110-A4 - Threaded Studs M8X110mm with Nut & washer

RAWLPLUG | R-STUDS-08110-A4 - Threaded Studs M8X110mm with Nut & washer
Previous productRAWLPLUG | R-SPL-12120/25 -...
Next productRAWLPLUG | R-XPT-06050/10 -...

9.90 (QAR)

Manufacturer: RAWLPLUG

SKU: RAW/R-STUDS-A4-08110

Overview

Product Features and benefits:

High-performance bonded anchors offer high load-bearing capacities
A4 stainless steel offers improved load-bearing capacities (relative to standard carbon steel)
Can be post-installed through fixture in some cases. (Consult technical advisory service)
Hexagonal bit for the wrench with appropriate tightening torque

Technical Specifications:

Size	Product Code	Anchor		Fixture
		Diameter	Length	Max. thickness t_fixfor:		Hole diameter	Max. thickness t_fixfor:
		d	L	h_{nom, 6d}	h_{nom, 12d}	d_f	h_nom,min	h_{nom, 12d}
		[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
M8	R-STUDS-08110-A4	8	110	52	4	9	40	4

Product Features and benefits:

High-performance bonded anchors offer high load-bearing capacities
A4 stainless steel offers improved load-bearing capacities (relative to standard carbon steel)
Can be post-installed through fixture in some cases. (Consult technical advisory service)
Hexagonal bit for the wrench with appropriate tightening torque

Technical Specifications:

Size	Product Code	Anchor		Fixture
		Diameter	Length	Max. thickness t_fixfor:		Hole diameter	Max. thickness t_fixfor:
		d	L	h_{nom, 6d}	h_{nom, 12d}	d_f	h_nom,min	h_{nom, 12d}
		[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
M8	R-STUDS-08110-A4	8	110	52	4	9	40	4
