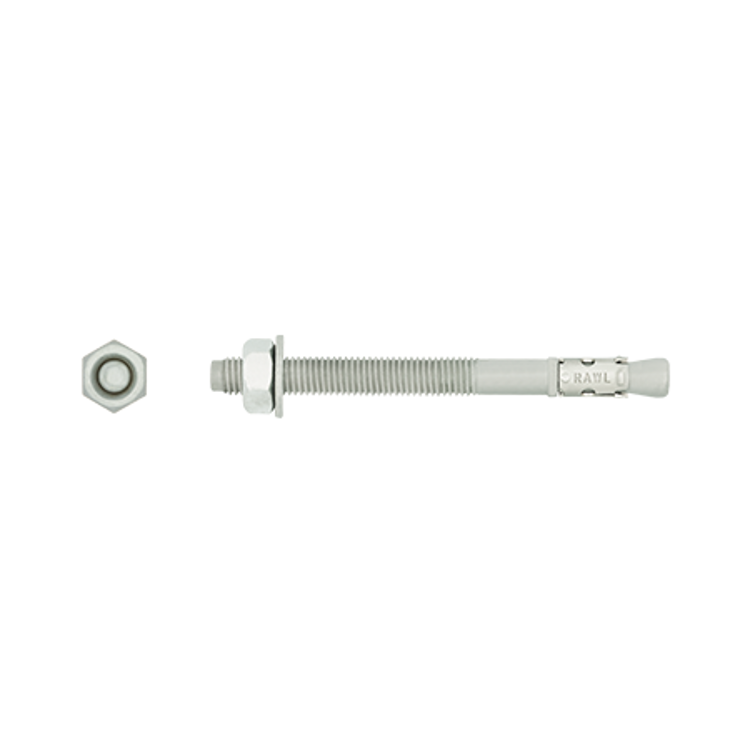

Product Features and benefits:
- Increased corrosion resistance due to hot dip zinc external protection layer
- R-XPT is suitable for reduced embedment to avoid contact with reinforcement
- Embedment depth markings help to ensure precise installation of the anchor
- Design of R-XPTII allows drilling and installing directly through the fixture and helps to reduce installation time
- High quality with cost effectiveness
- Cold formed body ensures consistent dimensional accuracy

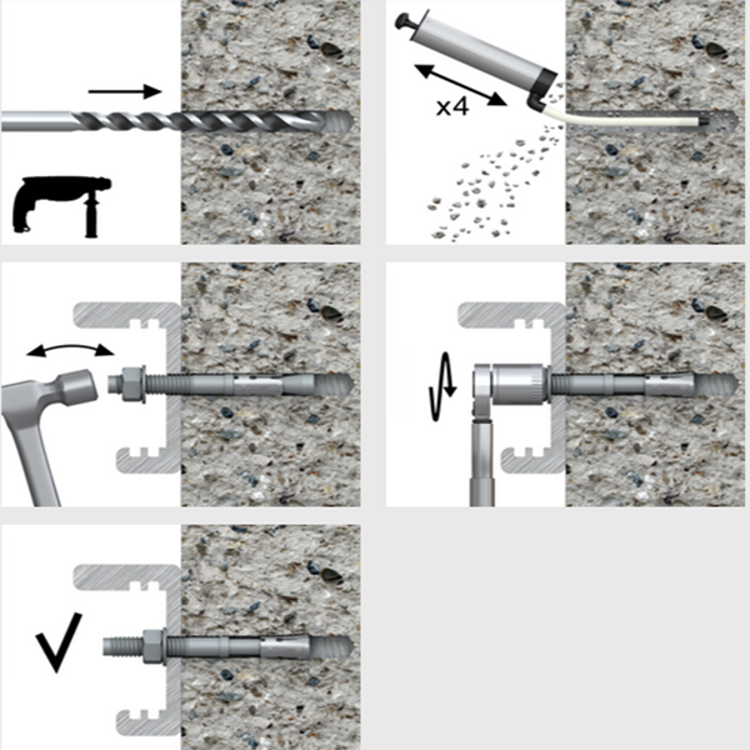

Installation guide
- Drill a hole of required diameter and depth
- Clear the hole of drilling dust and debris (using blowpump or equivalent method)
- Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached
- Tighten to the recommended torque
Technical Specifications:
| Size | Product Code | Anchor | Fixture |
| Diameter | Length | Max. thickness tfix for: | Hole diameter |
| d | L | hnom,red | hnom,std | df |
| [mm] | [mm] | [mm] | [mm] | [mm] |
| M16 | R-XPT-HD-16150/30 | 16 | 150 | 50 | 30 | 18 |
