About this Item

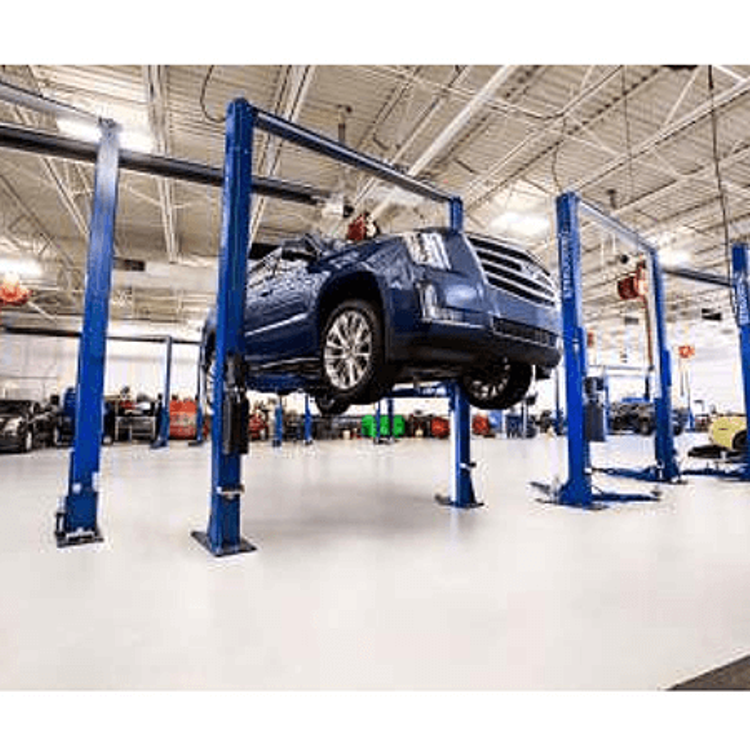

SPL 10 3 Stage XL is an extended height hydraulic asymmetric two post lift with a lifting capacity of 10,000 pounds and 3-stage arms. This two post lift features a powerful 3.5 hp integrated power unit and covered hard-chromed cylinders, making it a precisely engineered mix between durability and appearance.
This lift consists of SPL10000MXL 3S and arms 2100SPL08801A and SPL10F02100.
The SPL 10 3 Stage XL two post lift is the perfect automotive lift for your shop. With our manufacturing facility in North Carolina, these two post lifts are readily available for fast delivery and proudly MADE IN THE USA.
The SPL 10 3 Stage XL with it’s TRUE asymmetric design has virtually the same drive thru width as other lifts but has an overall width up to 20″ narrower than the competition. And with the extended lifting height of 80.5 inches, you are increasing your space in all directions!
For long life and durability, only hard steel hydraulic lines are used. They will not wear and age like flexible hydraulic hoses!
The SPL 10 3 Stage XL contains a high performance power unit with adjustable lowering speed through a single control lever, which allows for safer lifting and lowering! And the lift automatically shuts off when it reaches highest position, or at the highest vehicle height, eliminating pump fatigue.
Features:
- 3-Stage arm design enables you to position vehicle doors in front of or behind columns to avoid door damage and provide you with added reach
- Narrow bay setting at 124 ″ allows the most efficient use of bay space in the industry without losing drive through width
- Fast lifting and lowering times
- Variable lowering speed with manual control lever
- Mechanical security locks
- Hard-chrome cylinder guarantees extreme long-life cycle
- Productive coverings for column cylinders provide safer operation and clean shop appearance
- Asymmetrical two post vehicle lifting
- Low maintenance and almost wear-free cylinder
- Designed for short and long wheelbase vehicles
Technical Specification
| Capacity | 10,000 lb |
| Pick up pad height min | 5 inch |
| Front arms extension min-max | 21.5 - 43.5 inch |
| Rear arm extension min-max | 39.5 - 59 inch |
| Inside column width | 105 inch |
| Lifting height | 80.5 inch |
| Overall width min | 120 - 124 inch |
| Drive-through width min | 94.75 inch |
| Total height min | 160 inch |
| Power supply (V/ph) | 208/230 / 1 ph |
| Motor power | 3.5 hp |
Packaging
| Packaging | Wooden crate |
| Product Dimensions | 143in x 42in x 20in |
| Total weight | 1750lb |
| Stackable | 4 |
