About this Item

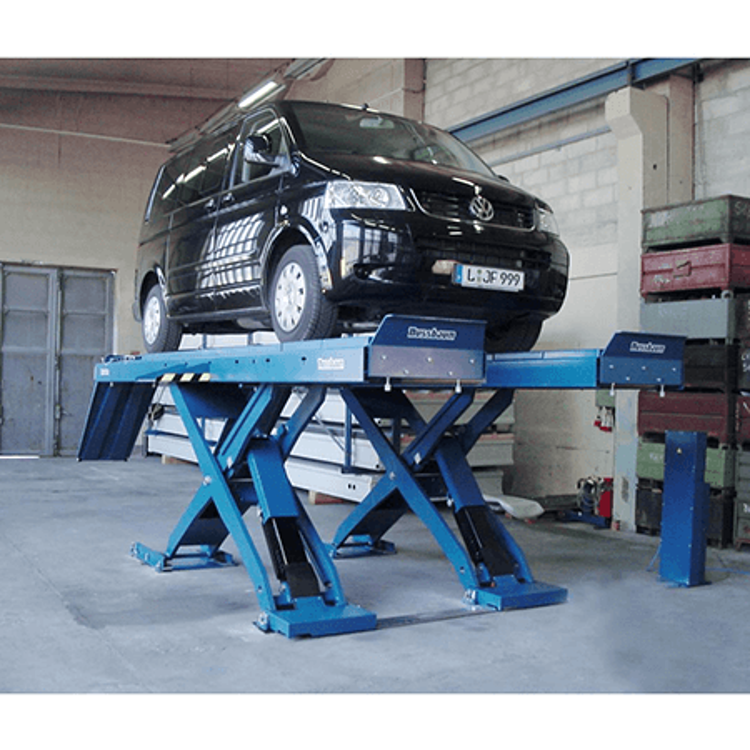

- Incorporates the NUSSBAUM hydraulic synchronisation system with precisely machined steel to create an alignment lift which fits the highest precision standard. This lift is the perfect solution for general repair, wheel alignment, test lanes and car reception areas.
Alignment Lift Features
- Alignment:Built in rear slip plates and turntable cutouts to accommodate the largest turn plates in the market.
- Increased Productivity:No mechanical connection between the platforms allows free access between the scissors
- Installation:Can be installed above-ground or in-ground
- Flat and compact construction make the lift specially suitable for above-ground installation
- “Safe-T-Lower” engages slow lowering and warning tone at 12″
- Cylinders are hard chromed to increase durability and life
- Uses less area than a similar four post, conserving valuable shop space
- Mechanical locks standard for perfect alignment leveling at three positions
- Available with flat or alignment ready runways
- High performance oil-submerged power unit ensures a quiet operation and fast lifting and lowering times
Function & Safety
A hydraulic Synchronisation System with Nussbaum made cylinders, ensures safety and precision at all times. The mechanical locks allow to create predetermined alignment positions, for live Adjustments.
Technical Specification
| 18000 lb |
| Platform length min | 216.5 inch |
| Lifting height | 74.875 inch |
| Platform distence min | 37 inch |
| Drive on height | 8 inch |
| Overall width min | 99 inch |
| Power supply (V/ph) | 208/230 / 1 |
| Motor power | 3 hp |
Packaging
| Wooden crate | Single use pallet |
| 240in x 32in x 20in | 51in x 21in x 20in |
| Total weight | 4400lb | 220lb |
| Stackable | 2 | |
